Haul Truck Adjustable Height Tray Access Platform

Custom Adjustable Height Tray Access Platform SKU: HTAHTAP

Haul Truck Adjustable Height Tray Access Platform

Custom Adjustable Height Tray Access Platform SKU: HTAHTAP
  • Adjustable from 4.35mH to 5.75mH
  • 200mm Swivel/brake and fixed plate castors
  • Telescopic Edge Protection Wings that are 9.4mW o/a
  • 45 degree stair access
  • x4 Machine Jacks for stability
  • Height adjustable via manual winch
  • Fork tyre pockets

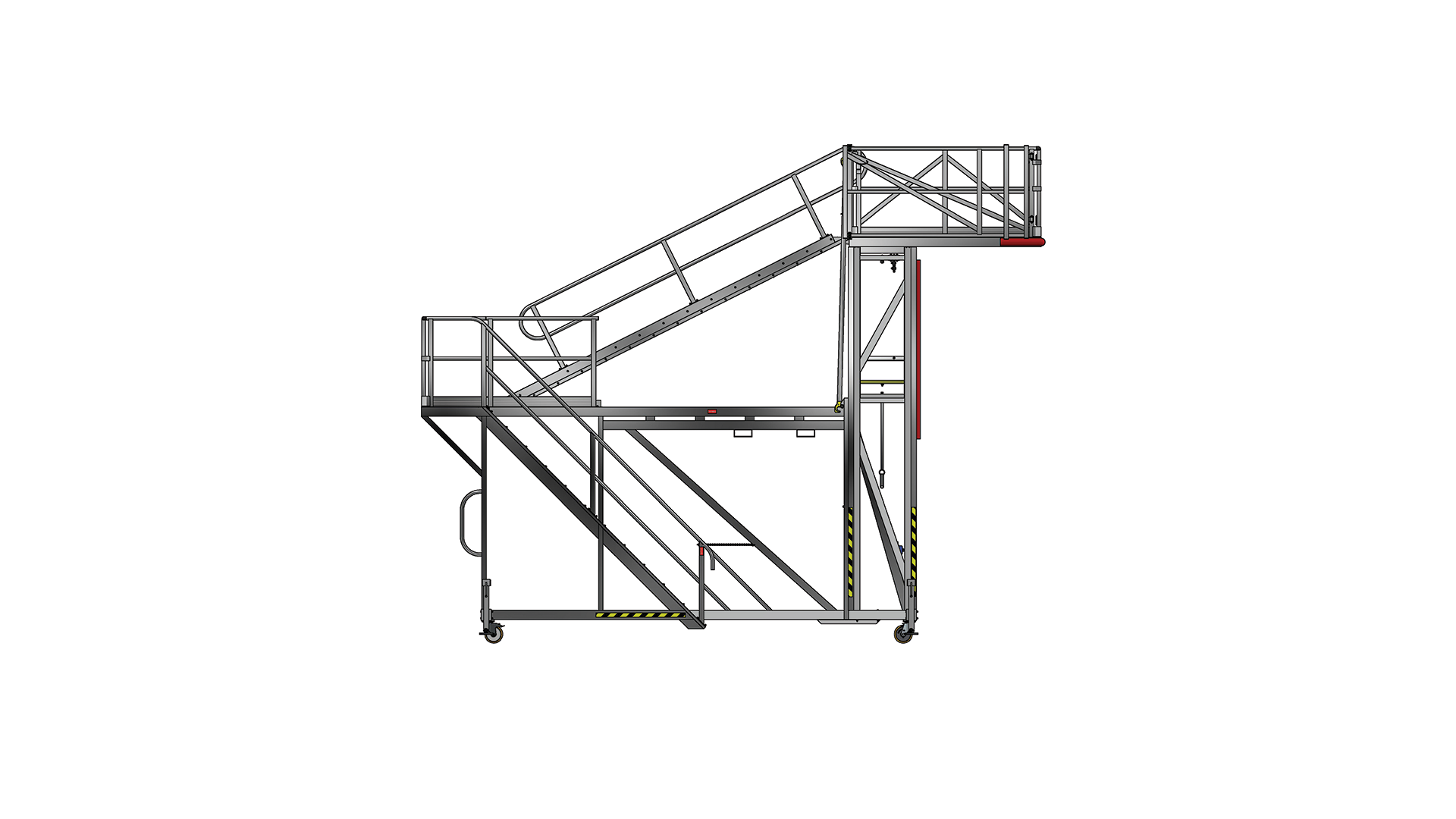

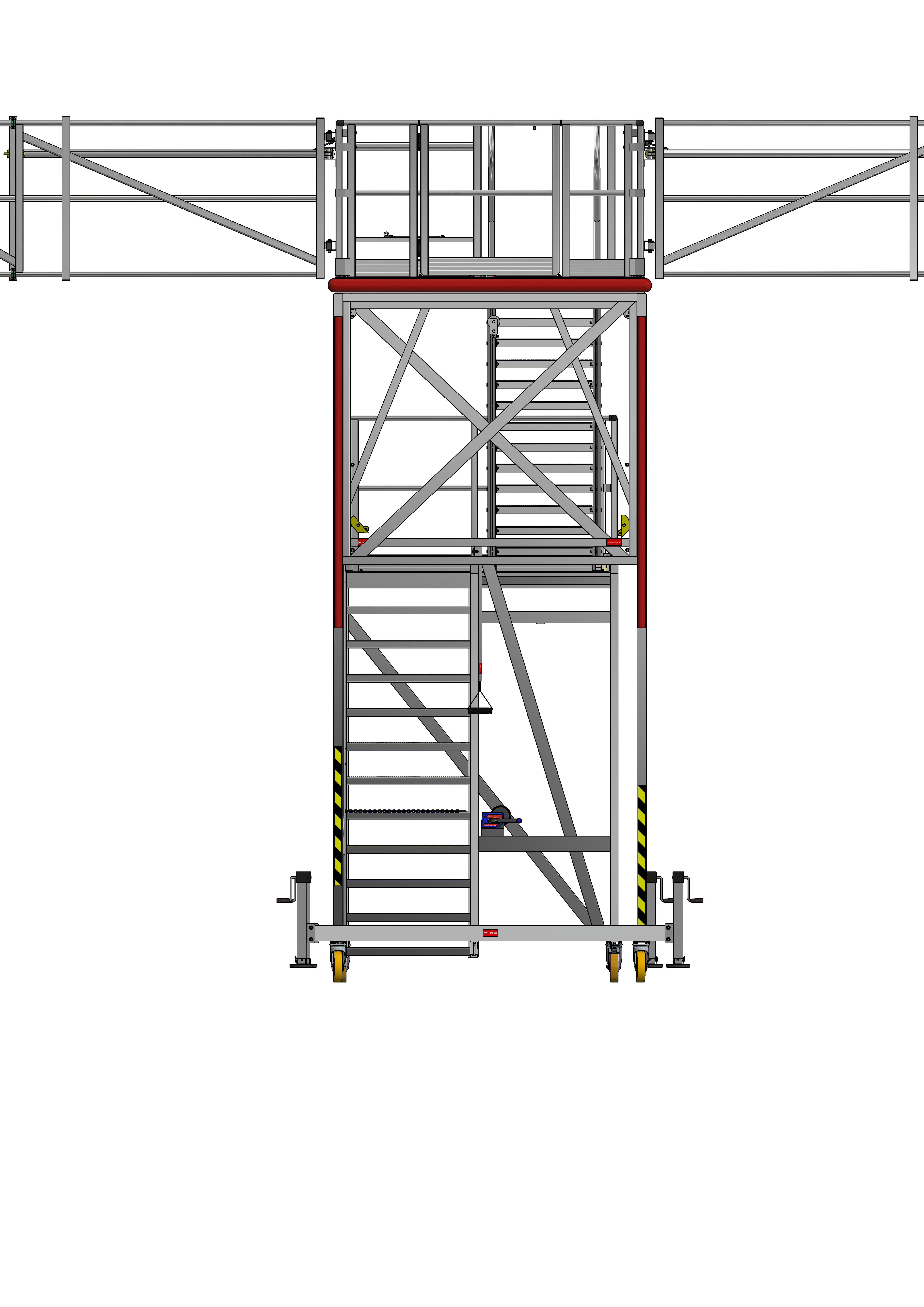

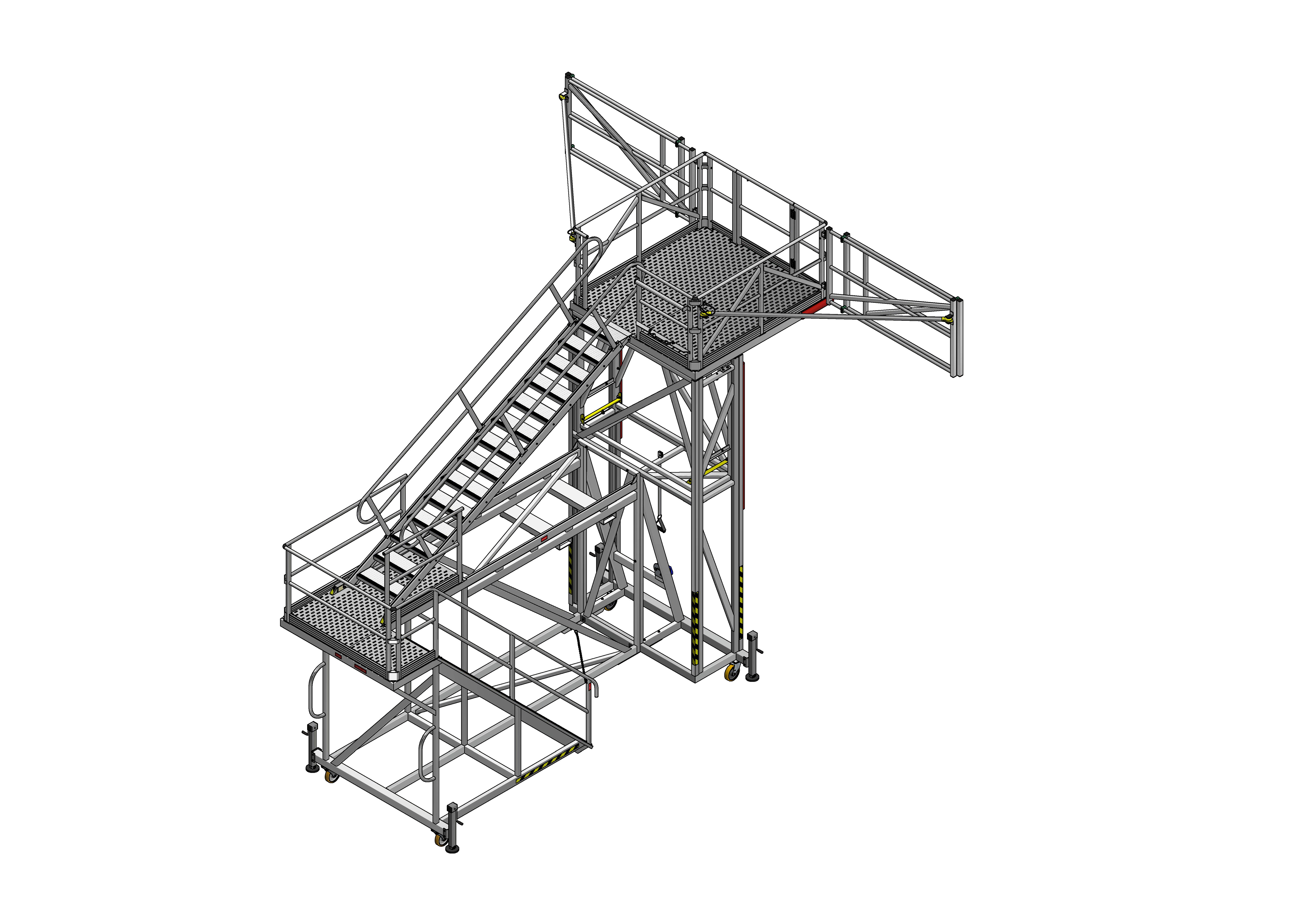

This is a height adjustable work platform with telescopic folding edge protection wings for direct access into the back of Haul Truck Trays.

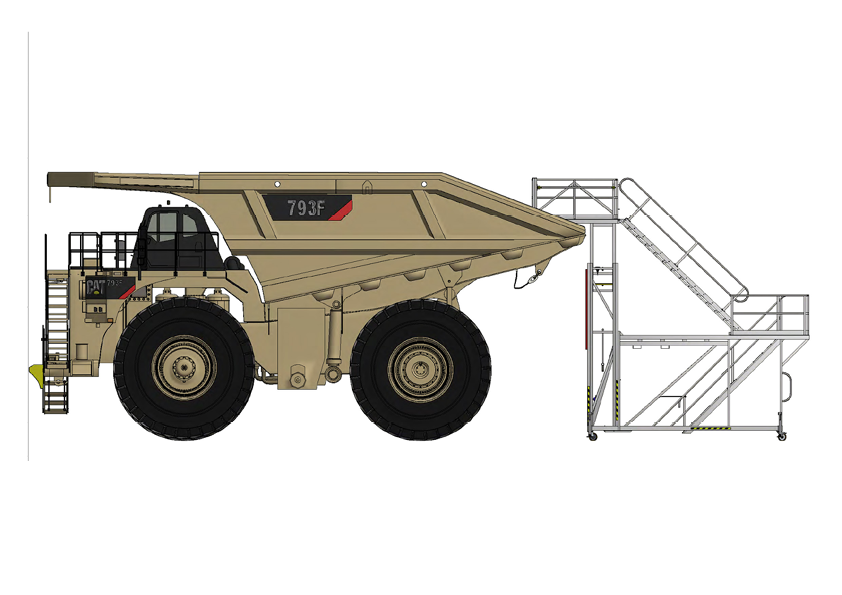

The Platform is designed to fit the following trucks:

  • CAT 793 F,C and D.
  • CAT 789 D
  • CAT 785 D.
  • Komatsu 830e and 930e
  • Hitachi EH3500, EH4500 and EH5000
  • Liebherr T282
This platform gives the maintenance and fabrication teams the ability to access straight into the back of trays for general fabrication works, re-lines or major repairs. With the adjustability of the platform, this means that it can reach not only numerous tray heights but also accommodate for a number of tray widths. This platform eliminates the need to erect a scaffold every time this work needs to be completed, meaning that the platform can be rolled straight into place, reducing down-time for the onsite teams.
  • Adjustable from 4.35mH to 5.75mH
  • 200mm Swivel/brake and fixed plate castors
  • Telescopic Edge Protection Wings that are 9.4mW o/a
  • 45 degree stair access
  • x4 Machine Jacks for stability
  • Height adjustable via manual winch
  • Fork tyre pockets

This is a height adjustable work platform with telescopic folding edge protection wings for direct access into the back of Haul Truck Trays.

The Platform is designed to fit the following trucks:

  • CAT 793 F,C and D.
  • CAT 789 D
  • CAT 785 D.
  • Komatsu 830e and 930e
  • Hitachi EH3500, EH4500 and EH5000
  • Liebherr T282
