A freestanding guardrail system with weighted bases

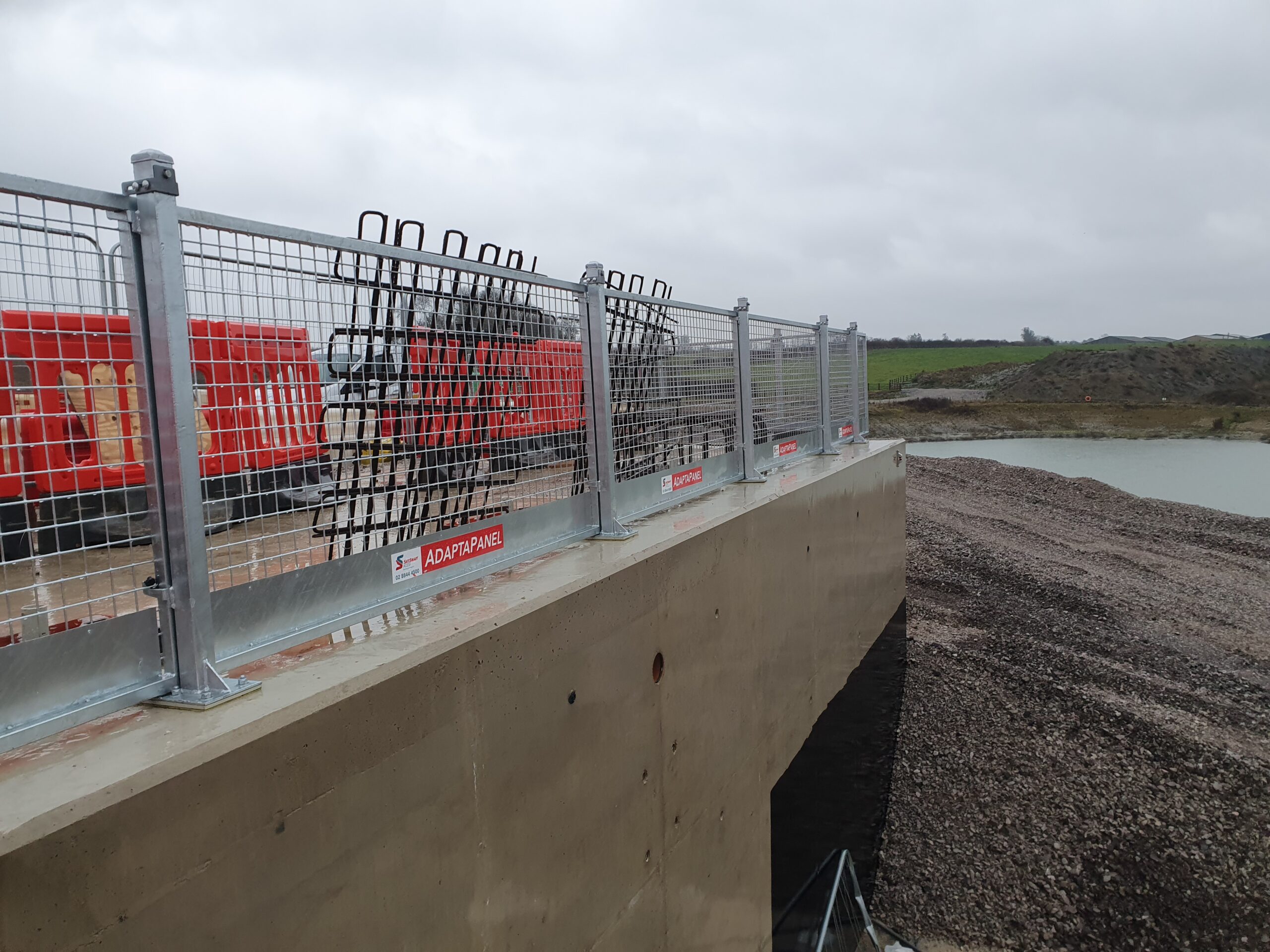

A client needed edge protection for work on the abutments of a bridge. Drilling into the finished concrete was not an option because of the risk to structural integrity and appearance. We designed counterbalanced posts that use individual steel weights, with no bolting or drilling, and the result is a freestanding guardrail that stays in place on the concrete.

We developed the design with health and safety officers and scaffold foremen, through prototype testing and product demonstrations. It is now a permanent part of the AdaptaPanel range and a standardised part of the edge protection systems we supply.

Steel weights and rubber-lined feet

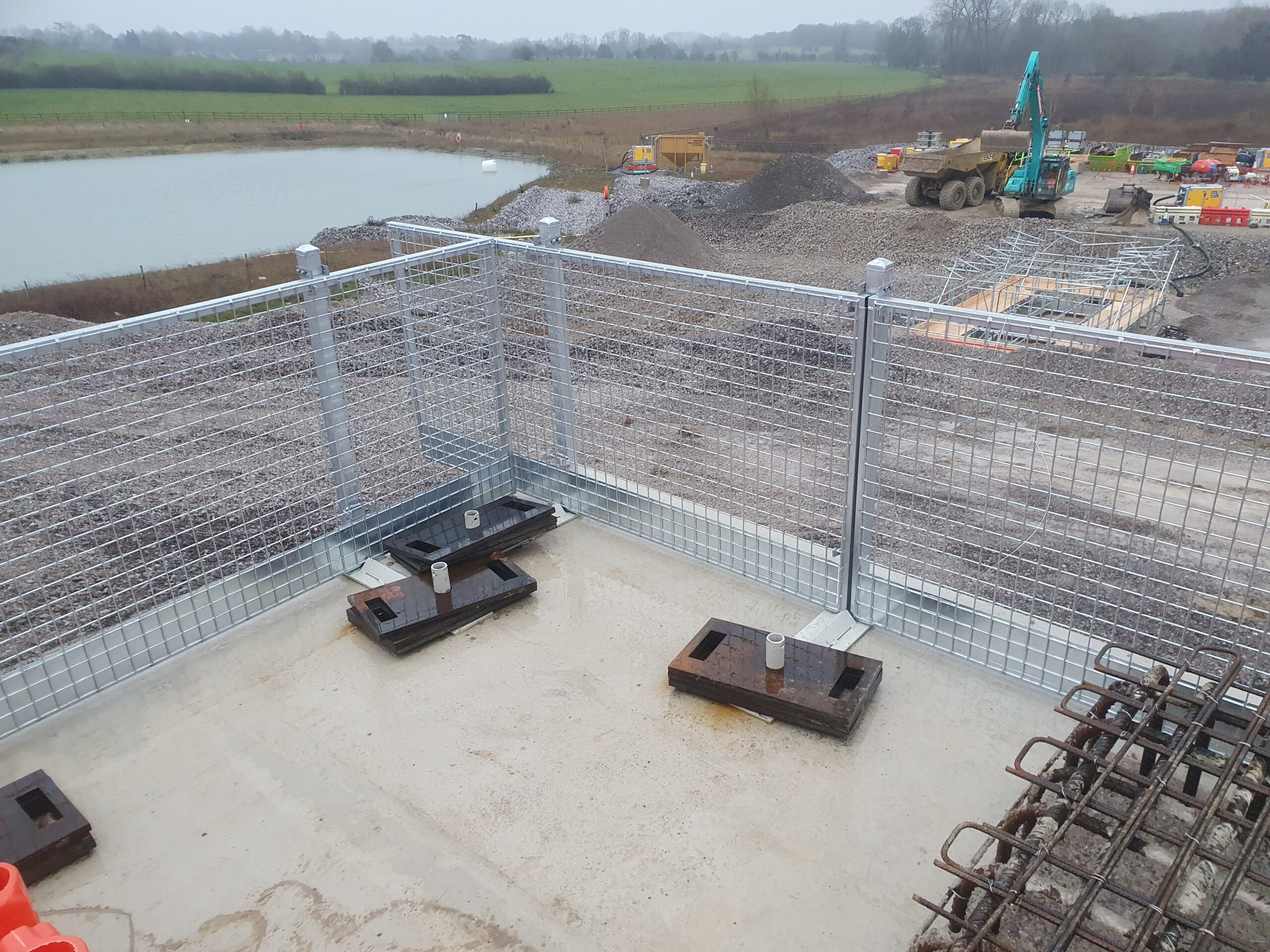

Freestanding weighted guardrails depend on the base for stability, because nothing is fixed to the surface. In this weighted edge protection, each 1.0 m high post stands on an AdaptaPanel Free Standing Foot Plate, 700mm, which includes bolts and non-slip rubber (SKU 210872-1). We line the underside of the foot with ribbed rubber to provide friction, prevent movement, and maintain the integrity of the concrete.

The weight comes from the AdaptaPanel Free Standing Edge Protection Weight Block, 20kg, plain steel (SKU 210895). Each post works as counterweight edge protection: we designed counterbalanced posts that use individual steel weights, with no bolting or drilling.

Edge protection without drilling or fixing

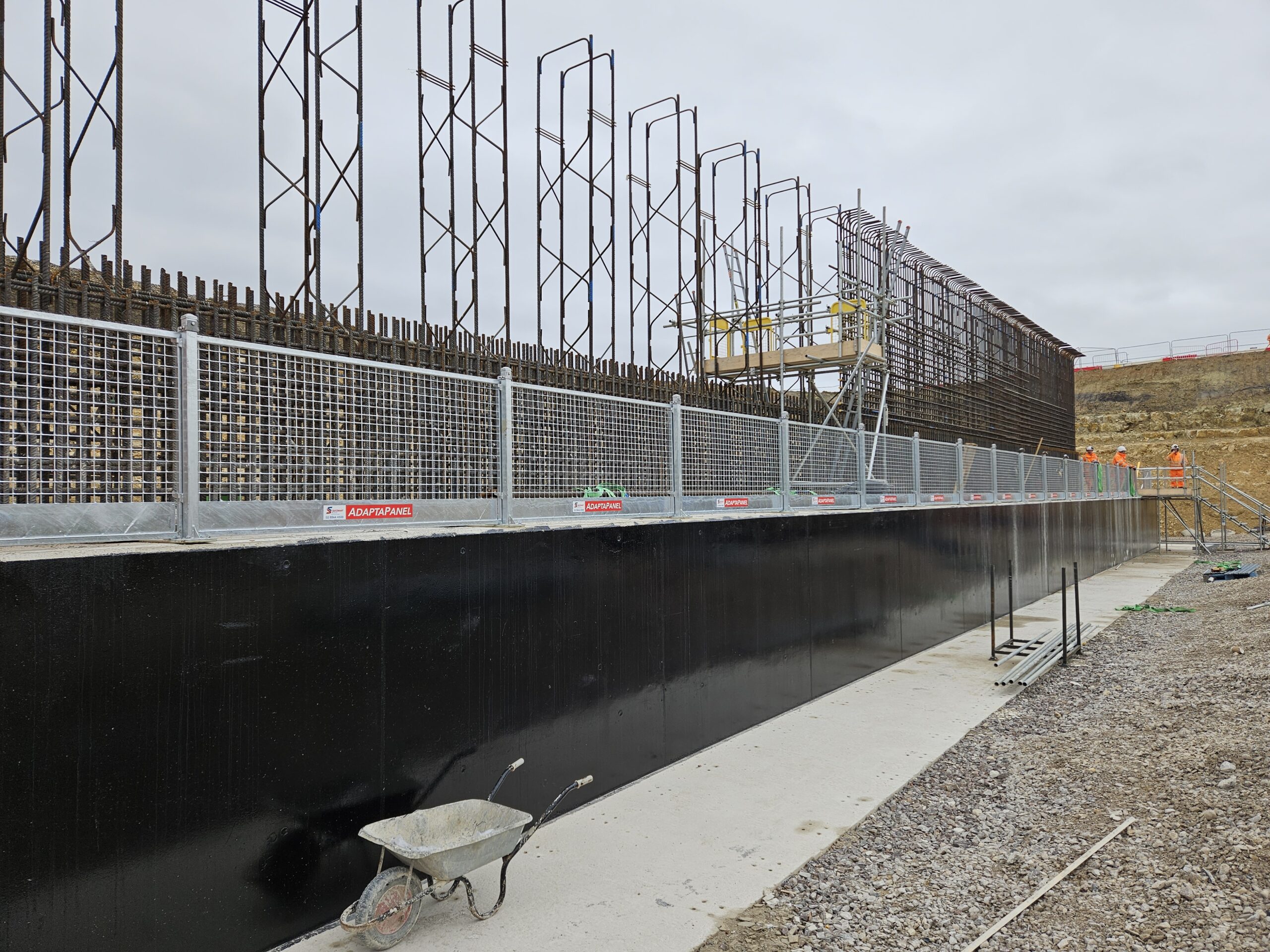

Our Free Standing Edge Protection goes onto finished work with no drilling or fixing to the surface, so your concrete keeps its structural integrity and its appearance. Any operative can set it up without specialist scaffolding expertise.

We engineer each component to stay within manual handling limits, so the people building the run are not lifting beyond them. Setup time is shorter than with traditional scaffolding methods, which puts workers behind a guardrail sooner and takes less of their time to install.

This is edge protection for edges where drilling or fixing is not permitted.

Panels, gates and colours

You build a run from the 1.0mH AdaptaPanel Edge Protection Post and AdaptaPanel Mesh Fence Panels, both part of the AdaptaPanel temporary edge protection system.

  • 1 metre and 2 metre widths: panels in both widths let the crew match the run to the length of the edge.
  • 50 x 50mm mesh: eliminates dropped objects at the edge.
  • Storage and transport: the panels stack.
  • Integrated locking gates: available where operatives need access through the run.
  • Powder coating colours: available for brand recognition on site.

Standards and compliance

We design each component to meet relevant design and load requirements of BS EN 13374. We design the system as a whole to meet BS 5395-3.

Our UK operation monitors and maintains compliance with HSE WAHR for each product.

Supplying UK contractors since 2007

We have supplied height access equipment to UK contractors since 2007, including Costain and Laing O’Rourke. We manufacture our Free Standing Edge Protection in an ISO 9001-certified facility.

“SafeSmart has been our appointed supplier for a number of years.”

Dewet D

  • No drilling or fixing: the system stands on the surface with no bolting or drilling, so your finished concrete stays intact.
  • Steel weights and a rubber-lined foot: individual steel weights counterbalance each post, and ribbed rubber under the foot provides friction against movement.
  • 1 metre and 2 metre panels: you choose the panel size to suit the run.
  • BS EN 13374: the components are designed to meet relevant design and load requirements of BS EN 13374.
When the structure is finished, drilling isn’t an option. Our non-penetrating system stands on the surface, protecting the open edge without breaking into concrete, membranes or insulation. That’s A Better Way to work at height.
SKU: 210842
AdaptaPanel Edge Protection Post
  • AdaptaPanel Edge Protection Post - 1.0mH
  • Designed to meet relevant design and load requirements of BS EN 13374 "Temporary Edge Protection" Standard
SKU: 210847
AdaptaPanel Mesh Fence Panel
  • AdaptaPanel Mesh Fence Panel - 1.0mH x 2.0mL
  • Designed to meet relevant design and load requirements of BS EN 13374 "Temporary Edge Protection" Standard
SKU: 210872-1
AdaptaPanel Free Standing Foot Plate
  • AdaptaPanel Free Standing Foot Plate 700mm for 1.0mH Post - Includes Bolts and Non-Slip Rubber
  • Designed to meet relevant design and load requirements of BS EN 13374 "Temporary Edge Protection" Standard
SKU: 210895
AdaptaPanel Free Standing Edge Protection Weight Block
  • AdaptaPanel Free Standing Edge Protection Weight Block 20kg - Plain Steel
  • Designed to meet relevant design and load requirements of BS EN 13374 "Temporary Edge Protection" Standard
